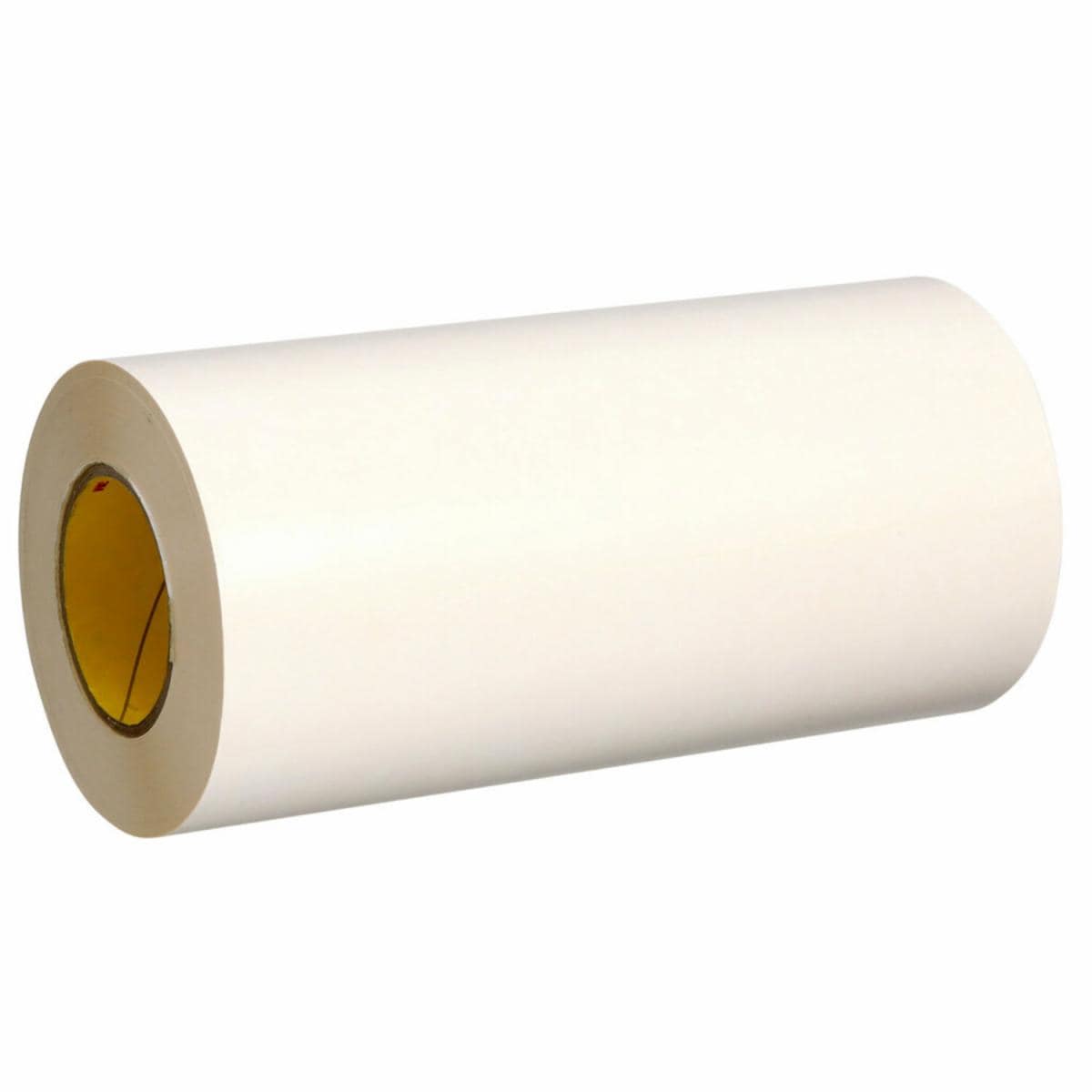

3M™ Double Coated Polyester Tape 442KW
- | Select product options for IDs.
Details
Highlights
- Attaches polishing pads to platens for chemical mechanical planarization (CMP) in semiconductor manufacturing
- Rubber based adhesive provides fast, reliable bonding strength and removes cleanly
- Adhesive is applied to film carrier on both sides for effective lamination to pads and clean removal from platens
- Also applicable for polishing pad attachment to platens in HDD and glass manufacturing
- Polyester carrier film helps improve handling for uniform application
- Release liner adds dimensional stability for fast and efficient conversion
3M™ Double Coated Polyester Tape 442KW is a double sided tape featuring a rubber based adhesive, ideal for laminated bonding with semiconductor CMP polishing pads and clean removal from platens. A thin polyester (PET) film carrier helps the adhesive bond firmly to both platen and pad. A polycoated paper release liner provides excellent dimensional stability.
-
An adhesive chosen specifically for semiconductor CMP
3M™ Double Coated Polyester Tape 442KW features 3M™ Adhesive 830, a firm rubber adhesive system that combines adhesion, temperature performance and solvent resistance and provides a quick stick to a wide variety of materials. This adhesive has been chosen specifically for use in semiconductor CMP applications, as it laminates easily to polishing pads. It also removes cleanly from many surfaces, excellent for use with semiconductor platen.
Typical properties
| Adhesive Type | Natural Rubber |
| Application | CMP, Attaching, Bonding, Laminating |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Thickness (Metric) | 0.038 mm |
| Back Side Adhesive Type | Natural Rubber |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Imperial) | 1 mil |
| Backing (Carrier) Thickness (Metric) | 25.4 Micron |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Face Side Adhesive Thickness (Metric) | 38.1 Micron |
| Face Side Adhesive Type | Natural Rubber |
| Indoor/Outdoor | Indoor |
| Industries | Electronics |
| Maximum Operating Temperature (Celsius) | 70 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 158 ℉ |
| Minimum Operating Temperature (Celsius) | 10 ℃ |
| Minimum Operating Temperature (Fahrenheit) | 50 ℉ |
| Package Contents | 1 Roll |
| Primary Liner | Polycoated Bleached Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 5.6 mil |
| Primary Liner Thickness (Metric) | 142.24 Micron |
| Product Color | Transparent |
| Product Form | Roll |
| Product Usage | CMP Pads, Polishing Pads |
| Shelf Life | 18 Month |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Units per Case | 1.0 |
| Overall Length (Imperial) | 10 yd, 36 yd, 60 yd, 108 yd, 180 yd |
| Overall Length (Metric) | 9.14 m, 29.26 m, 32.92 mm, 65.62 m, 98.76 m, 164.59 m |
| Overall Width (Imperial) | 1 in, 2 in, 4 in, 32 in, 34 in, 48 in, 54 in |
| Overall Width (Metric) | 25.4 mm, 50.8 mm, 101.6 mm, 812.8 mm, 863.6 mm, 1219.2 mm, 1371.6 mm |
