3M™ Blockout Film 3635
- | Select product options for IDs.
Details
Highlights
- Blocks out light for internally illuminated signage
- Adheres to rigid or flexible substrates
- First and second surface applications
This film blocks light transmission when applied to internally illuminated signs and enhances a neon type effect when used on the second surface of clear acrylic. 3635 20b is white on the face side and black on the back side. 3635 22b is black on the face side and white on the back side.
Typical properties
| Adhesive Type | Solvent Acrylic |
| Application Method | Wet |
| Application Surface | Flat |
| Color Palette | Black, White |
| Converting Process | Screenprinting |
| Core Size (Imperial) | 3 in |
| Core Size (Metric) | 76.2 mm |
| Factory ISO Certification | No ISO Certification information available |
| Features | Pressure-sensitive Adhesive |
| Film Thickness (Imperial) | 3.15 mil |
| Film Thickness (Metric) | 80 Micron |
| Film Type | PVC |
| Flexible Substrate | Yes |
| Imaging Method | UV Screenprint |
| Interior/Exterior | Interior, Exterior |
| Maximum Service Temperature (Celsius) | 107 ℃ |
| Maximum Service Temperature (Fahrenheit) | 224.6 ℉ |
| Minimum Application Temperature (Celsius) | 16 ℃ |
| Minimum Application Temperature (Fahrenheit) | 60.8 ℉ |
| Minimum Service Temperature (Celsius) | -30 ℃ |
| Minimum Service Temperature (Fahrenheit) | -22 ℉ |
| Opacity | Translucent/Transparent |
| Product Code | 3635-20B, 3635-22B |
| Product Color | Black Matte, Matte White |
| Product Usage | Illuminated Signage, Flexible Signage |
| Service Life | 5 Year |
| Surface Finish | Matte |
| Warranty Coverage | 3M Basic Product Warranty, 3M™ MCS™ Warranty |
| Overall Length (Imperial) | 50 yd |
| Overall Length (Metric) | 45.7 m |
| Overall Width (Imperial) | 48 in |
| Overall Width (Metric) | 1219.2 mm |
Resources

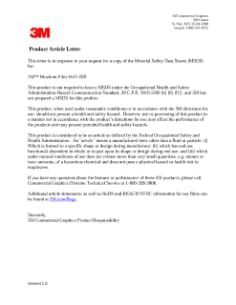

Product Article Letter 3635-20BData Sheets
(PDF, 144KB)
Product Article Letter 3635-22BData Sheets
(PDF, 144KB)
