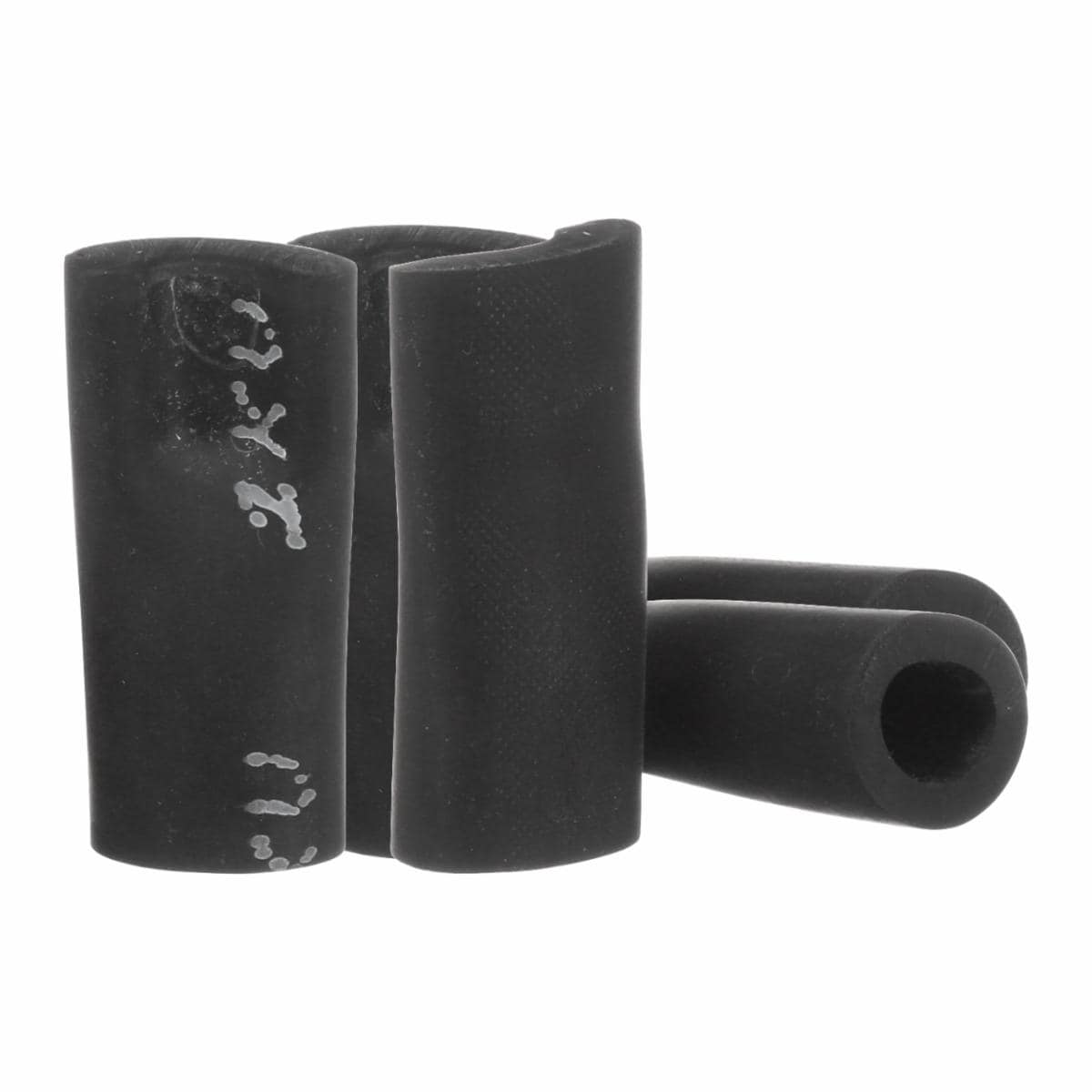

3M™ Motor Lead Pigtail Splice Kits, 1-Hole Lug Connections 5300-5304 Series
- | Select product options for IDs.
Details
Highlights
- Splices motor lead cables to incoming feeder cables
- Designed to use with copper compression, 1-hole lugs
- Slip-on lug cover is made of durable EPDM rubber
- For pigtail (stub) connections at 1000V or less
- Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
- CSA Certified and RoHS 2011/65/EU Compliant
3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet
Typical properties
| Application | Cross Linked Polyethylene Cable, Polyethylene Cable, Ethylene Propylene Rubber Cable, For Insulating and Sealing Motor Lead Connections for Copper Conductors |
| Application/Industry | Commercial Construction, Industrial Construction |
| Cable Shielding | Non-shielded, Single Conductor Cable |
| Connection Type | Pigtail (Non-shielded) |
| Insulation Outside Diameter | 0.17-0.36 Inch, 0.12-0.21 Inch, 0.34-0.54 Inch, 0.40-0.80 Inch, 0.67-1.05 Inch |
| Insulation Outside Diameter Range | 0.17-0.36 in, 0.34-0.54 in, 0.40-0.80 in, 0.67-1.05 in, 0.12-0.21 in |
| Insulation Outside Diameter Range (Metric) | 4.3 - 9.1 mm, 8.6 - 13.7 mm, 10.2 - 20.3 mm, 17.0 - 26.7 mm, 3.0 - 5.3 mm |
| Kit Includes | (3) Pigtail Lug Covers |
| Lug Cover Inner Diameter | 0.45 in, 0.70 in, 0.95 in, 1.20 in, 1.70 in |
| Lug Cover Inner Diameter (Metric) | 11.4 mm, 17.8 mm, 24.1 mm, 30.5 mm, 43.2 mm |
| Lug Cover Length | 2.1 in, 3.4 in, 4.2 in, 5.3 in, 6.7 in |
| Lug Cover Length (Metric) | 53.3 mm, 86.4 mm, 106.7 mm, 134.6 mm, 170.2 mm |
| Maximum Bolt Length | 1/2 in, 3/4 in, 3/8 in, 1-1/2 in, 1-1/4 in |
| Maximum Bolt Length (Metric) | 9.5 mm, 12.7 mm, 19.1 mm, 31.8 mm, 38.1 mm |
| Maximum Feeder Lead Size | 4 AWG, 1/0 AWG, 10 AWG, 250 kcmil, 500 kcmil |
| Maximum Motor Lead Size | 4 AWG, 1/0 AWG, 12 AWG, 250 kcmil, 500 kcmil |
| Maximum Operating Voltage | 1 kV |
| Product Color | Black |
| Range Feeder Cable (AWG & kcmil) | 10-4, 2-1/0, 14-10, 1/0-250, 250-500 |
| Splice Type | Pigtail Only |
| Units per Case | 1.0 |
| Voltage | 1 kV |
