3M™ Mechanical Shearbolt Two-Hole Lug QL2 Series

3M™ Mechanical Shearbolt Two-Hole Lug QL2 Series

Options available
| Select product options for IDs.

Designed to use with cold shrink QT-lll terminations

Stepless shearbolt bolt shears at the same location regardless of conductor cross section

Contact pad ensures optimun contract pressure for reliable performance and mechanical pull-out strength

Frequently viewed resources

Tech Data Sheet (PDF, 341KB)

Maximum Conductor Size (Metric)

Maximum Conductor Size (Imperial)

Minimum Conductor Size (Metric)

Outer Diameter (Metric)

Minimum Conductor Size (Imperial)

Outer Diameter (Imperial)

Select product options

Details

Highlights

Designed to use with cold shrink QT-lll terminations
Stepless shearbolt bolt shears at the same location regardless of conductor cross section
Contact pad ensures optimun contract pressure for reliable performance and mechanical pull-out strength
Suitable for copper or aluminum conductors
Made of aluminum for good conductivity and has corrosion-resistant tin plating
Meets the requirements of ANSI 199.4, class 2 pull out

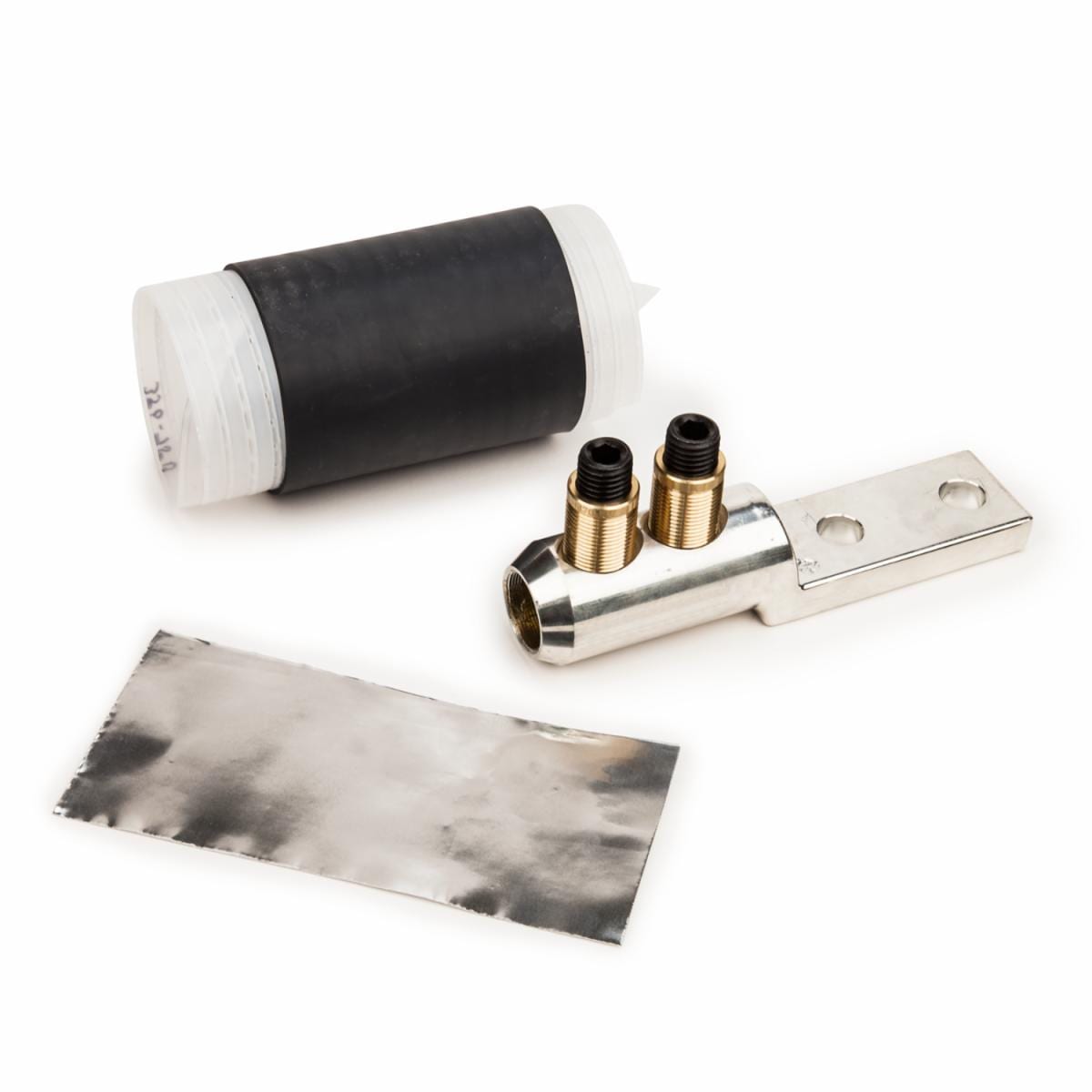

3M™ QL2 Shearbolt 2 Hole Mechanical Lug Kit is specially designed to use with 3M Cold Shrink QT lll Terminations. The lug has a shearbolt design that offers good performance. The friction plate included with the kit helps prevent damage to the conductor, providing greater contact force.

Typical properties

Details

Lug Type	Shearbolt Lugs
Maximum Conductor Size (Imperial)	250 kcmil, 750 kcmil, 1000 kcmil, 1250 kcmil
Maximum Conductor Size (Metric)	120 mm², 400 mm², 500 mm², 633 mm²
Minimum Conductor Size (Imperial)	2 AWG, 350 kcmil, 500 kcmil, 1000 kcmil
Minimum Conductor Size (Metric)	35 mm², 185 mm², 240 mm², 500 mm²
Outer Diameter (Imperial)	1.1 in, 1.65 in, 2.05 in
Outer Diameter (Metric)	28 mm, 42 mm, 52 mm
Product Type	Lug
Stud Hole Quantity	2
Voltage	15 kV

Resources

3M™ Mechanical Shearbolt Lugs QL2 Series, Two-Hole - Data Sheet

Data Sheets

(PDF, 341KB)
