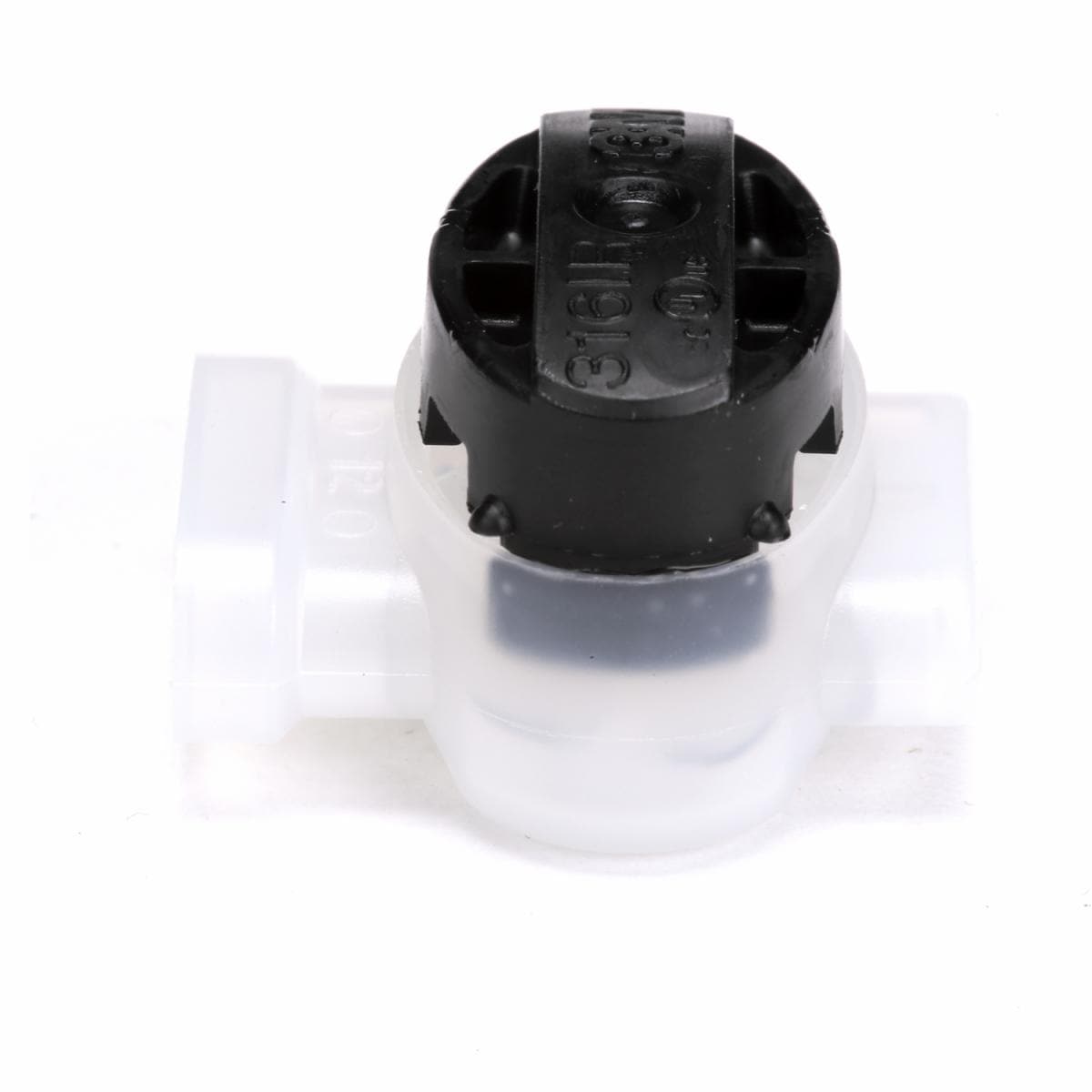

3M™ Scotchlok™ Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG, 30 per carton, 300 /Case
- 3M ID 7000058271
- UPC 00054007504191
Details
Highlights
- Helps provide a moisture-resistant seal
- Suitable for applications requiring moisture and UV protection
- Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
- C UL Listed and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Insulation Displacement Connector 316IR is ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring moisture resistance. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and moisture resistant.
3M™ Scotchlok™ Insulation Displacement Connector 316IR is 600V rated for building wire. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
Typical properties
| Brands | Scotchlok™ |
| Conductor Sizes (Imperial) | 16 AWG, 22 AWG |
| Conductor Sizes (Metric) | .34 mm², 1.5 mm² |
| Connection Type | Pigtail |
| Connector / Connector Tool | 3M Crimping Tool E-9BM, 8" Mechanics (slip joint) Pliers |
| Connector Style | Insulation Displacement |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | Yes |
| Insulation Color | cap black, body white |
| Insulation Material | Nylon |
| Insulation Outer Diameter (Imperial) | 0.155 in |
| Interrupt Free Shifting | No |
| Material | Flame Retardant Nylon |
| Max. Number of Cores | 3 |
| Maximum Conductor Size (Imperial) | 16 AWG |
| Maximum Conductor Size (Metric) | 1.5 mm² |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size (Imperial) | 22 AWG |
| Minimum Conductor Size (Metric) | .34 mm² |
| Moisture Resistant | Yes |
| Package Quantity | 1000 |
| Product Color | White, Black |
| Product Type | Connectors |
| Recommended Crimping Tool | E-9BM |
| Run Maximum Insulation Outer Diameter (Imperial) | 0.155 in |
| Run Maximum Insulation Outer Diameter (Metric) | 3.9 mm |
| Tap Maximum Insulation Outer Diameter (Imperial) | 0.155 in |
| Tap Maximum Insulation Outer Diameter (Metric) | 3.9 mm |
| UL File Number | E23438 |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
