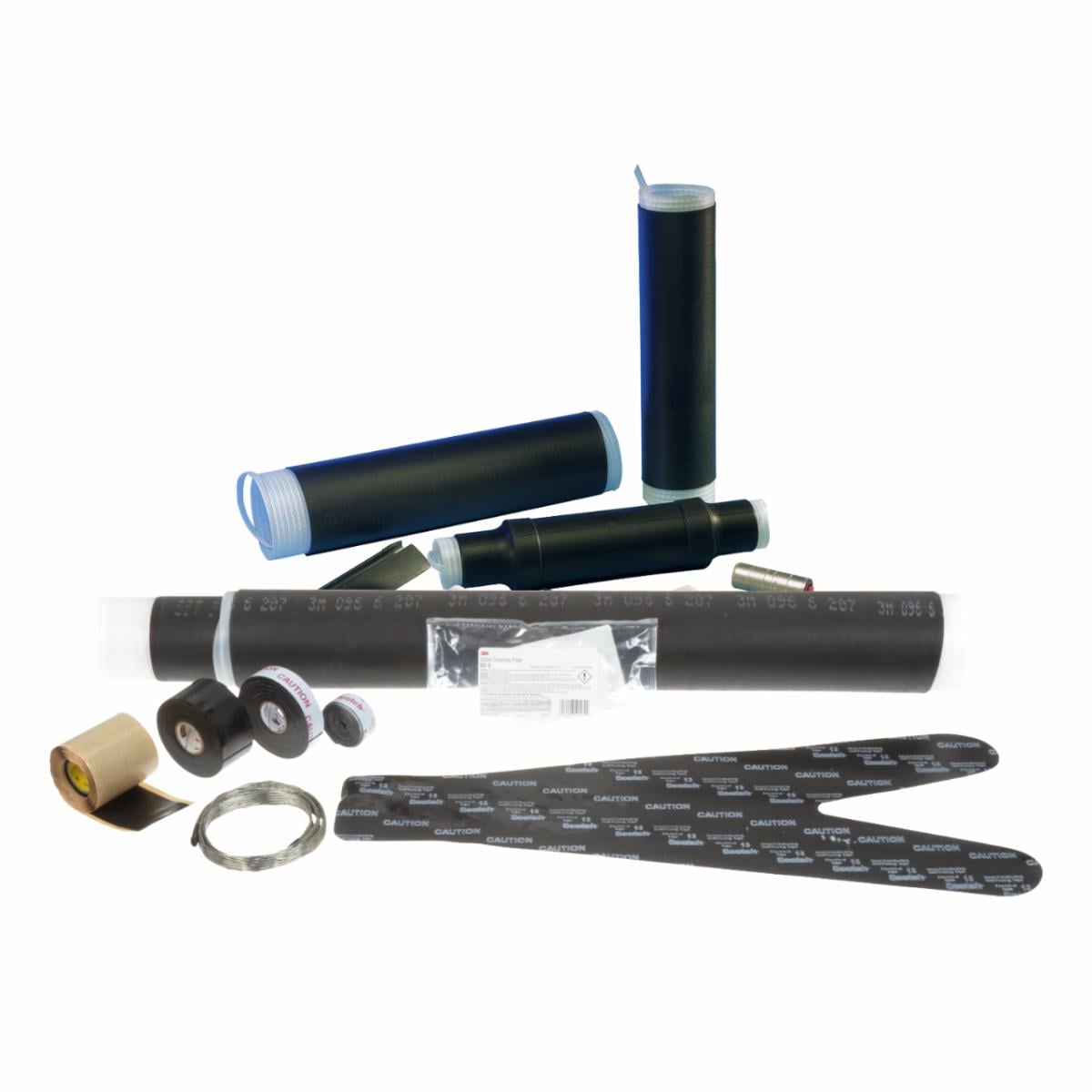

3M™ Cold Shrink Shielded Splice Kits 5550 Series
- | Select product options for IDs.
Details
Highlights
- Provides splicing on tape shield, wire shield and UniShield® cables
- This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct-burial applications
- Insulator and jacket is made of EPDM for easy installation
- Rated for 5/8 kV applications
- IEEE Approved
3M™ Cold Shrink Shielded Splice Kit 5550 Series are for splicing 5 kV and 8 kV shielded, solid dielectric, power cables.
Meeting the requirements of IEEE 404, each 3M™ Cold Shrink Shielded Splice Kit 5550 Series kit contains all the materials (except connectors and optional ground strap) required to construct three (3) single conductor splices on Tape Shield, Wire Shield or UniShield® cables. Note: The kit can also be used to splice a shielded to a non-shielded 5/8 kV cable. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation outside diameter
Typical properties
| Application | Cable Connection |
| Brands | 3M™ |
| Cable Shielding | Tape Shield, UniShield®, Wire Shield |
| Cable Type | Cable with rubber insulation |
| Case Quantity | 1 |
| Conductor Material | Aluminum, Copper |
| Conductor Sizes (Imperial) | 350 kcmil, 900 kcmil |
| Conductor Sizes (Metric) | 185 mm², 456 mm² |
| Halogen Free | No |
| Insulation Level | 100%,133% |
| Insulation Outer Diameter (Imperial) | 0.73 in, 0.74 in, 0.75 in, 0.76 in, 0.77 in, 0.78 in, 0.79 in, 0.8 in, 0.81 in, 0.82 in, 0.83 in, 0.84 in, 0.85 in, 0.86 in, 0.87 in, 0.88 in, 0.89 in, 0.9 in, 0.91 in, 0.92 in, 0.93 in, 0.94 in, 0.95 in, 0.96 in, 0.97 in, 0.98 in, 0.99 in, 1 in, 1.01 in, 1.02 in, 1.03 in, 1.04 in, 1.05 in, 1.06 in, 1.07 in, 1.08 in, 1.09 in, 1.1 in, 1.11 in, 1.12 in, 1.13 in, 1.14 in, 1.15 in, 1.16 in, 1.17 in, 1.18 in, 1.19 in, 1.2 in, 1.21 in, 1.22 in, 1.23 in, 1.24 in, 1.25 in, 1.26 in, 1.27 in, 1.28 in, 1.29 in, 1.3 in, 1.31 in, 1.32 in, 1.33 in, 1.34 in, 1.35 in, 1.36 in, 1.37 in, 1.38 in, 1.39 in, 1.4 in, 1.41 in, 1.42 in, 1.43 in, 1.44 in, 1.45 in, 1.46 in, 1.47 in, 1.48 in, 1.49 in, 1.5 in, 1.51 in, 1.52 in |
| Material | EPDM Rubber |
| Maximum Conductor Size (Imperial) | 1000 kcmil (Aluminum), 1000 kcmil (Copper), 400 kcmil (Aluminum), 500 kcmil (Copper |
| Maximum Conductor Size (Metric) | 185 mm² (Aluminum), 240 mm² (Copper), 500 mm² (Aluminum), 500 mm² (Copper) |
| Maximum Connector Length | 3.7 inch (Al), 4.3 inch (Cu), 5.3 inch (Al), 6.3 inch (Cu) |
| Maximum Connector Length (Metric) | 109 mm (Cu), 134.6 mm (Al), 160.0 mm (Cu), 94 mm (Al) |
| Minimum Conductor Size (Imperial) | 4/0 AWG (Aluminum), 4/0 AWG (Copper), 500 kcmil (Aluminum), 500 kcmil (Copper) |
| Minimum Conductor Size (Metric) | 120 mm² (Aluminum), 120 mm² (Copper), 240 mm² (Aluminum), 240 mm² (Copper) |
| Number of Conductors | 3 |
| Product Color | Black |
| Product Series | 5550 Series |
| Splice Type | Cold Shrink, Inline |
| Suggested Accessory | 3M™ Ground Strap Assembly GS-2, 3M™ Ground Strap Assembly GS-3 |
| Typical Splice Length | 21.0 in, 23.0 in |
| Typical Splice Length (Metric) | 533.4 mm, 584.2 mm |
| Units per Case | 1.0 |
| Voltage | 5 kV, 5/8 kV, 8 kV |
| Voltage Application | Medium Voltage |
| Overall Length (Imperial) | 21 in, 23 in |
| Overall Length (Metric) | 533 mm, 584 mm |
Resources
Safety Data Sheets
Document Number: MSDS_2642981_US_EN
(PDF , 0B)
