3M™ TufQUIN Insulating Paper
- | Select product options for IDs.
Details
Highlights
- Mechanical strength suitable for rigorous winding applications
- Offers excellent thermal conductivity, long-term voltage endurance and low moisture absorption
- Ideal for dry-type transformers, traction motors, generators, wire and cable wrap, spiral and convolute tubing applications
- Compatible with commonly used impregnating resins and varnishes
- Suitable for high-temperature electrical insulation system applications rated up to Class 200(N)
3M™ TufQUIN™ Inorganic Hybrid Insulating Paper is a hybrid inorganic/organic paper based upon advanced manufacturing techniques. TufQUIN offers the high-temperature capabilities of inorganic materials combined with the high mechanical strength gained by the use of organic fiber.
3M™ TufQUIN™ Inorganic Hybrid Insulating Paper is a combination of inorganic and organic ingredients designed to optimize the thermal and mechanical properties required in today’s demanding applications. TufQUIN papers can be combined with polyester film to form a flexible laminate uniquely suited for high temperature electrical insulation applications including motors, generators and transformers. TufQUIN products have undergone extensive thermal aging evaluation per UL 1446, “Standard for Systems of Insulating Materials – General,” and as a result are UL Recognized as suitable for use as major insulation in electrical insulation systems through Class 200(N). 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant .
Typical properties
| Application | Other, Dry-Type Transformer, Motor/Generator |
| Brands | 3M™ |
| Construction | Pure Paper, Laminate |
| Electrical Insulation System Thermal Class | 200C |
| Flexible Insulation Product | TufQUIN Inorganic-Organic Hybrid Insulating Papers and Laminates |
| Insulation Construction | Pure Paper, Paper Laminate |
| Laminate Construction | 2+2+2, None |
| Mechanical Strength | Better, Best |
| Product Type | Electrical Insulation Paper |
| Thermal Class | 200 °C |
| Thermal Conductivity | Better, Good |
| Total Thickness | 3 mil, 5 mil, 6 mil, 7 mil, 7.5 mil, 10 mil, 15 mil |
| Overall Thickness (Imperial) | 3 mil, 5 mil, 7 mil, 7.5 mil, 10 mil, 15 mil |
| Overall Thickness (Metric) | 76 micron, 127 micron, 178 micron, 190 micron, 254 micron, 381 micron |
Resources
3M™ TufQUIN 110 10 mil Electrical Insulating PaperData Sheets
(PDF, 18KB)
3M™ TufQUIN 110 5 milData Sheets
(PDF, 18KB)
3M™ TufQUIN 110 7 milData Sheets
(PDF, 18KB)

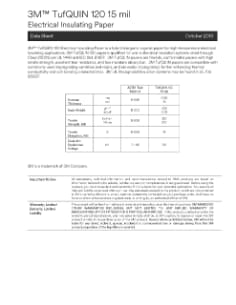

3M™ TufQUIN 120 15 mil Electrical Insulating Paper - Data Sheet - 78-9237-1874-2-AData Sheets
(PDF, 34KB)
