Scotch® Electrical Semi-Conducting Tape 13

  • Options available
  • | Select product options for IDs.

Rubber resin offers optimized adherence

Compatible with high-voltage splicing and terminating materials

Withstands temperatures up to 194 °F (90 °C)

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 287KB)
icn_down_arrow
icn_down_arrow

Select product options

Details

Highlights
  • Rubber resin offers optimized adherence
  • Compatible with high-voltage splicing and terminating materials
  • Withstands temperatures up to 194 °F (90 °C)
  • Rated for 600V applications
  • RoHS Compliant

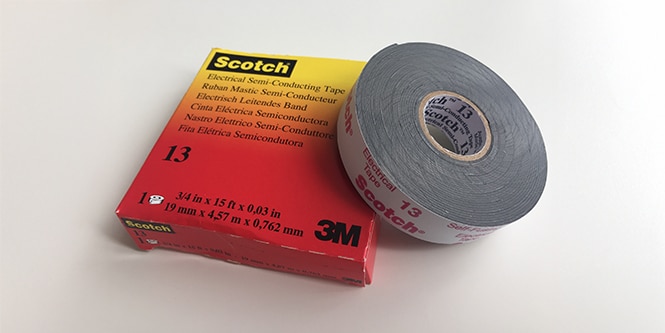

Scotch® Electrical Semi Conducting Tape 13 is a 30 mil, highly conformable, electrical semi conducting tape. This tape retains its conductivity with stretch. It offers excellent performance with the most solid dielectric cable insulations and conductors. The tape is suitable for indoor or outdoor applications.

Scotch® Electrical Tape 13 is non vulcanizing and shelf stable while maintaining stable conductivity over a wide temperature range. The tape elongates easily and conforms to irregular shapes. This semi conducting, premium grade tape provides excellent shielding for cable joints on solid dielectric insulated power cables. It withstands temperatures up to 194 °F (90 °C). The ethylene propylene, rubber based tape electrically rounds out high voltage connectors and bonds to insulating materials that minimize electrical stresses. RoHS Compliant.

Typical properties

Adhesive Type

Non-adhesive

Application

Electrical Maintenance

Backing (Carrier) Material

Ethylene Propylene Rubber

Brands

Scotch®

Elongation at Break

800.0 %

Maximum Operating Temperature (Celsius)

130 ℃

Maximum Operating Temperature (Fahrenheit)

266 ℉

Product Color

Black

Shelf Life

5 Year

Specifications Met

RoHS 2011/65/EU

Tape Grade

Professional

Tensile Strength (Imperial)

6.0 lb/in, 200.0 lb/in, 200.0 psi

Tensile Strength (Metric)

1378.9 kPa

Total Tape Thickness without Liner (Imperial)

30 mil

Total Tape Thickness without Liner (Metric)

0.76 mm

Units per Case

112.0

Voltage Rating

35 kV

Overall Length (Imperial)

10 ft, 15 ft

Overall Length (Metric)

3 m, 4.6 m

Overall Width (Imperial)

0.75 in, 1 in, 1.5 in

Overall Width (Metric)

19 mm, 25 mm, 38 mm
