3M™ Full-Range Markers
- | Select product options for IDs.
Details
Highlights
- Positive Identification of underground assets
- No external power source needed
- Resistant to elements
- Color conforms to APWA standards
- Color conforms to APWA standards
3M™ EMS Full Range Markers provide an accurate, convenient, long lasting method of marking underground facilities.
Full Range markers are ideally suited for marking the location of utilities buried at a deep distance. Passive full range markers will provide accurate identification of buried power lines, helping to reduce the risk of accidentally excavating other buried facilities. All markers function without the need for an external power source. Their water resistant polyetheline shells are impervious to minerals, chemicals and the temperature extremes normally found underground. An iD version is available which allows for the storage of customer specific information about the underground asset.
Typical properties
| Application/Industry | Wastewater, Water, Gas, Power, Telephone |
| Brands | 3M™ |
| Burial Depth (Imperial) | 8 ft |
| Burial Depth (Metric) | 2.4 m |
| EMS Caution Tape Finding Capability | N/A |
| Marker Depth | 8 feet (2.4m) |
| Marker Dimension (inch) | 15 inch Diameter x 0.65 inch Thick |
| Marker Finding Capability | Yes |
| Marker Function | Passive, Programmable |
| Marker Type | Full Range |
| Product Color | Green, Blue, Yellow, Red, Orange |
| Solution for | Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Wireless Network: Backhaul, Long-haul/Metro Loop Network: Outdoor |
| Transmitter Output | N/A |
| Units per Case | 25.0 |
| Utility Type | Wastewater, Gas, Potable Water, Power, Telephone |
| Overall Diameter (Imperial) | 15 in |
| Overall Diameter (Metric) | 38.1 cm |
| Overall Height (Metric) | 1.65 cm |
Resources

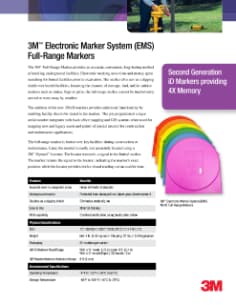

3M™ Electronic Marker System (EMS) Full Range Markers DSData Sheets
(PDF, 240KB)
