Sound Solutions for Automotive NVH
As the future of automotive design continues to evolve, in volume and quality, sound becomes as important as appearance and functionality. At 3M, we have spent decades helping to effectively manage noise, vibration and harshness (NVH) in your automotive designs without adding weight. And our solutions continue to lead the market. 3M™ Flexile Acoustic Material – our unique, high-performance acoustic technology – leverages the synergy between acoustic particles and a micro-fibrous structure to treat both airborne and structural noise in a single layer. Through our Thinsulate™ brand we continue improving sound insulation and absorption nearly anywhere on the vehicle, including engine-side and other high-temperature applications. And our 3M™ Engineered Damping Material EDM1000 Series is cleaner, easier to apply and delivers comparable performance to traditional constrained layer damping material, at half the weight. If this sounds good to you, we invite you to hear more. Explore now.
The Sound of Great Design
3M packs a lot of performance into 3M™ Flexile Acoustic Material. The dissipative material has both absorber and barrier properties in a single layer. Explore the science behind how our material functions compared to typical absorber and barrier materials on the market.
-
-
3M™ Flexile Acoustic Material FAB0910
1. High dissipative noise
2. Low transmitted noise
3. Low reflected noise -
When sound waves approach a dissipator through a structure, most of the arriving energy is converted to heat. Only low amount of energy is reflected and passes through to the interior of the vehicle. As a result, dissipators are less sensitive to leakage.
-
-
-
Typical barrier
1. Low dissipative noise
2. Low transmitted noise
3. High reflected noise -
When sound waves meet a barrier, most of the sound is reflected because of the airflow resistance of the material. As a result, limited sound is transmitted into the interior of the vehicle.
-
-
The Sound Revolution
Design trends demand a fresh approach to NVH management in vehicles.
Featured Product: 3M™ Flexile Acoustic Material FAB0910
-
Absorber and barrier performance in a single layer
Watch the video: We put 3M Flexile Acoustic Material FAB0910 to the test against two competitive solutions: shoddy and EVA. This experiment uses white noise to demonstrate how our material performs in normal applications and ones that require pass-through holes. Hear the results for yourself.
Our 3M™ Flexile Acoustic Material FAB Series combines multiple NVH acoustic properties in a single, non-molded material. Our high-performance technology is lighter weight than most typical barriers, features both absorber and barrier properties and has excellent mid frequency (500-2000 Hz) absorption without sacrificing performance in high frequencies. With material ranging from 4.5-19.5mm, 3M FAB Series products are excellent for use in applications with limited space, which allows more flexibility in your designs and the potential to increase cabin space without sacrificing acoustic performance.
Browse all of the 3M Flexile Acoustic Material products in our 3M Acoustic Insulation catalog
Related Products
-

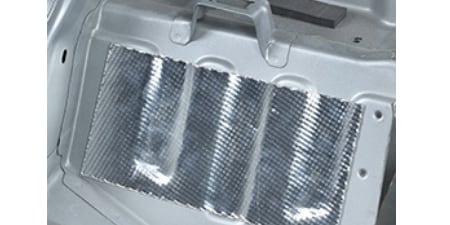

3M Engineering Damping Material features low-density engineered stem web construction that optimizes damping performance, allowing for equal performance from smaller parts. It is half the weight of comparable CLD materials across the same area. It is an excellent choice for vertical and overhead applications such as roofs and doors, as well as trunks, floors, rear wheel arches, spare tire areas and other irregular surfaces.
-
The Thinsulate SF Series a low density material that has good performance at low to mid frequencies. It is applied to exterior application, such as engine under cover, floor under cover and fender liner.
-
Thinsulate TF Series products are designed for optimal cavity filling — the products fill voids in pillars, behind trim panels, in headliners, or instrument panels to reduce unwanted noise.
Thank You
We are excited to share with you 'The Science Inside' - our monthly newsletter featuring the latest trends, technologies and applications. You will receive an email confirmation momentarily. View previous article editions.
Help us create a more personalized experience for you by selecting your interest areas (below). Stay tuned for 3M product news and updates…
Communication Topics
Our Apologies...
An error has occurred while submitting. Please try again later...
Need Help Finding the Right NVH Solution?
3M is constantly working to meet the evolving challenges of automotive OEM and Tier suppliers worldwide. If you need help finding an existing solution or would like to talk about specific ideas you’re working on, get in touch with us.
