3M™ Double Coated Tape 415, Transparent, 305 mm x 33 m, 0.1 mm
- 3M ID 70006003357
- UPC 50021200037844
Details
Highlights
- 100µm double coated tape on PET polyester carrier with #60 densified kraft DK paper liner
- Excellent UV resistance. Good adhesion to a wide variety of materials such as HSE high surface energy, LSE low surface energy and metals. Good temperature and humidity resistance
- Stick materials with HSE high surface energy, LSE low surface energy and metals
- Use a versatile tape with good adhesion on a wide variety of materials
- Good adhesion to a variety of substrates, including low and high surface energy substrates
3M™ Double Coated Tape 415 is a 100µm double coated polyester with acrylic adhesive 400 on a 100µm # 60 densified kraft paper liner
Tape many kinds of materials together, even in high temperatures and humidity, with 3M™ Double Coated Tape 415. Our medium-firm adhesive tape has an excellent balance of high initial adhesion and good shear holding power. Ideal for all kinds of materials, including those with high surface energy, low surface energy and even metals. Bond together similar and dissimilar materials, such as metals, glass, wood, papers, paints and plastics. It features double coated tape on PET polyester carrier, with densified kraft paper liner. We’ve designed it with excellent resistance to UV, high temperatures and humidity. Our tape gives high performance splicing in printing applications and is good on films and foils.
Typical Properties
| Adhesive Type | Acrylic |
| Back-Side Adhesive Thickness | 0.04 mm |
| Back-Side Adhesive Type | High Tack Acrylic 400 |
| Backing (Carrier) Material | Polyester |
| Brands | 3M™ |
| Face-Side Adhesive Thickness | 0.04 mm |
| Face-Side Adhesive Type | High Tack Acrylic 400 |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | General Industrial, Print, Paper |
| Maximum Operating Temperature (Celsius) | 82 ℃ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Primary Liner | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Metric) | 0.1 mm |
| Product Color | Transparent |
| Total Tape Thickness without Liner (metric) | 0.1 mm |
| Units per Case | 4.0 |
| Overall Length (Metric) | 32.9 m |
| Overall Width (Metric) | 304.8 mm |
Resources

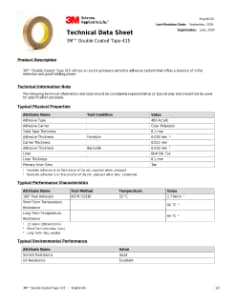

3M-Double-Coated-Tape-415.pdfOther
(PDF)
