3M™ Cold Shrink QT-III Three Conductor Cable Termination Kit 7624-T-95-3W, Tape, Wire and UniShield®, 15 kV, 0.92-1.18 in (23.4-30.0 mm) Cable Insul. O.D., 3 terminations/kit
- 3M ID 80611443708
- UPC 50054007047341
Details
Highlights
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications and cabinet-mount installations
- JIS, IEC and AEIC Approved
3M™ Cold Shrink QT-III 7600-T-3W Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
Typical Properties
| BIL | 95 kV |
| Brands | 3M™ |
| Breakout Boot | Yes |
| Cable Insulation Outside Diameter Range (metric) | 23.4-30.0 mm |
| Case Quantity | 1 |
| Indoor/Outdoor | Indoor Non-skirted |
| Insulation Level | 100%, 133% |
| Insulation Outer Diameter (metric) | 23.368 mm, 23.622 mm, 23.876 mm, 24.13 mm, 24.384 mm, 24.638 mm, 24.892 mm, 25.146 mm, 25.4 mm, 25.654 mm, 25.908 mm, 26.162 mm, 26.416 mm, 26.67 mm, 26.924 mm, 27.178 mm, 27.432 mm, 27.686 mm, 27.94 mm, 28.194 mm, 28.448 mm, 28.702 mm, 28.956 mm, 29.21 mm, 29.464 mm, 29.718 mm, 29.972 mm |
| Insulation Rejacketing | Yes |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 3 |
| Product Series | 7600-T-3W |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 5 kV, 8 kV, 15 kV |
Resources

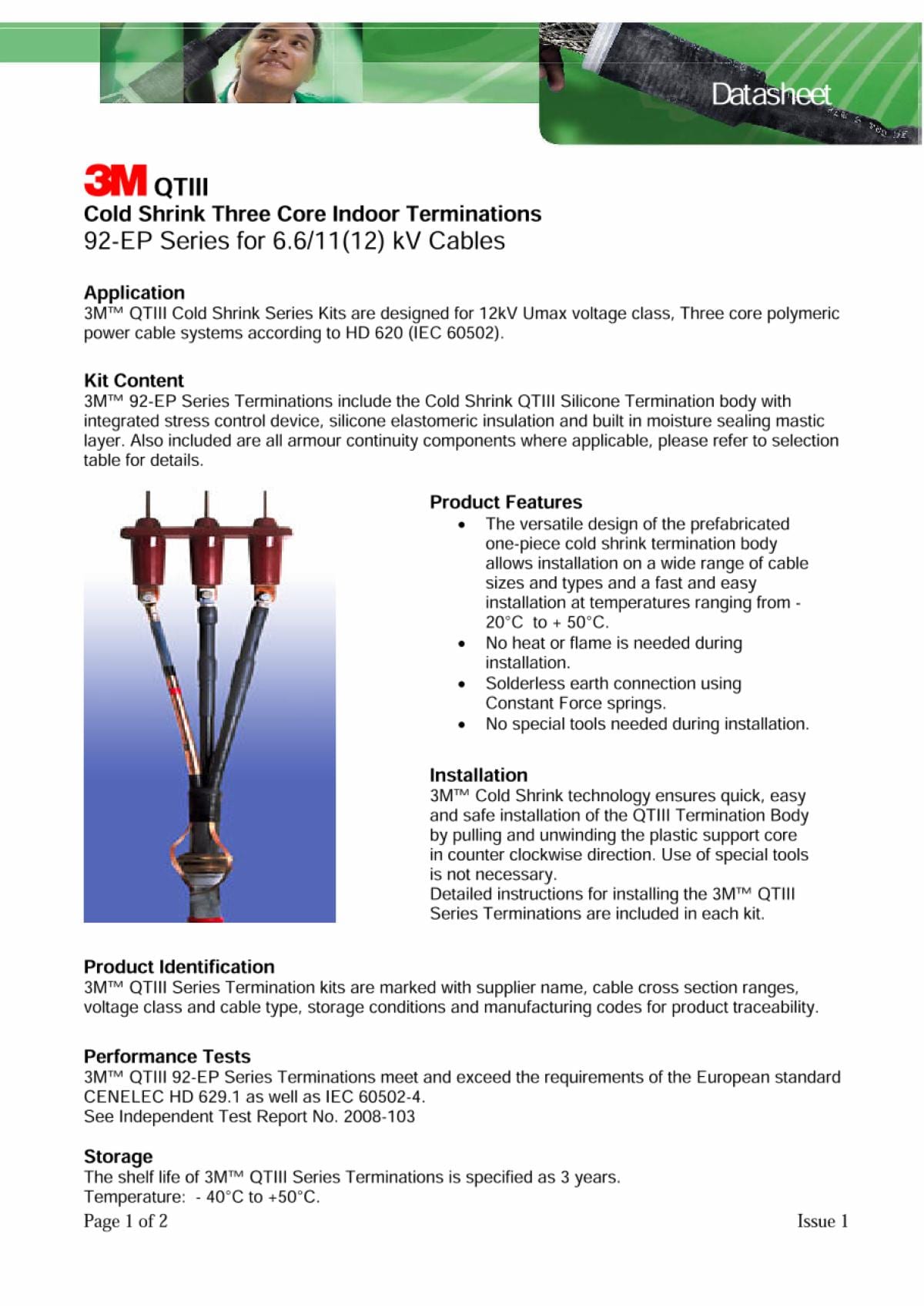

3M QTIII Cold Shrink Three Core TerminationsData Sheets
(PDF, 73KB)
