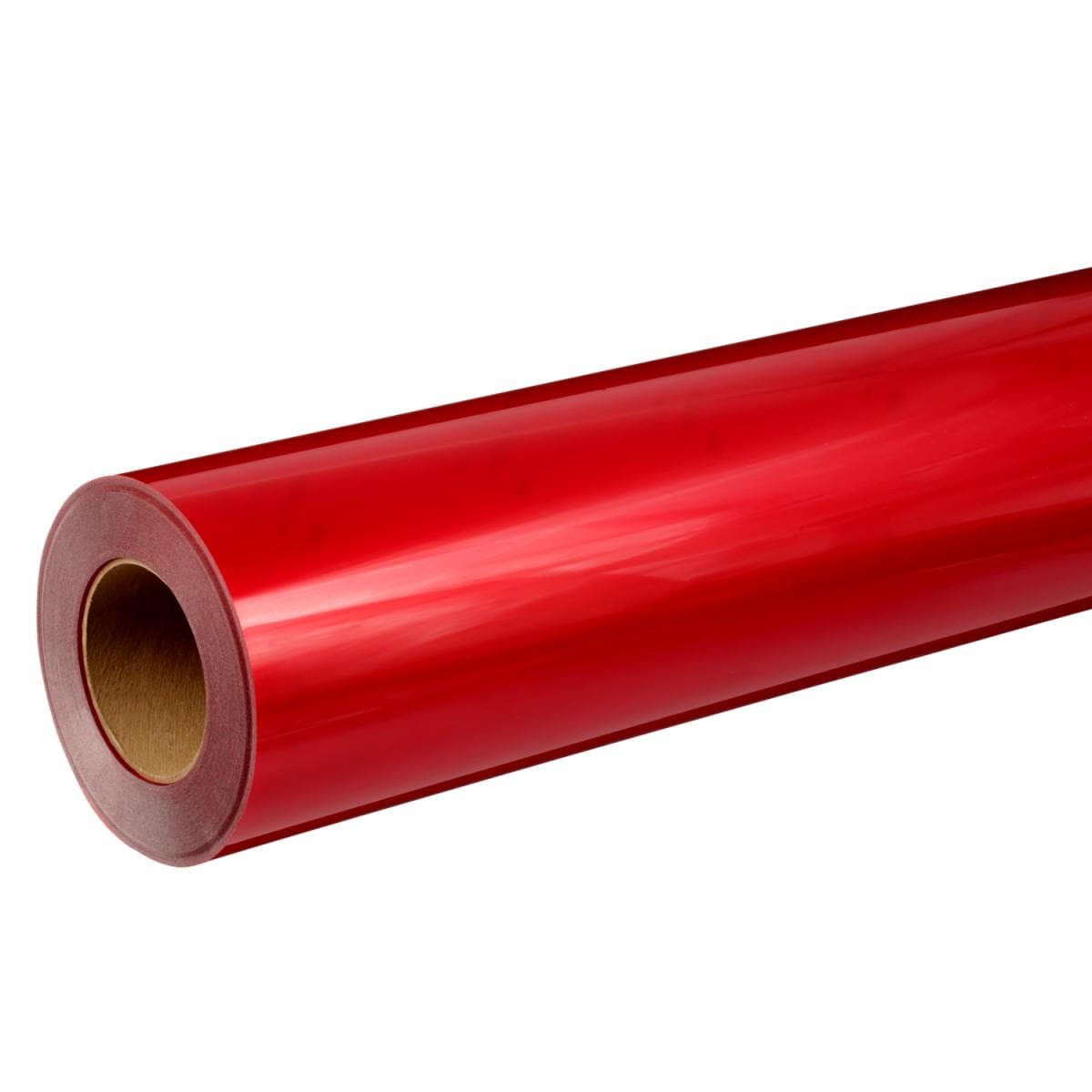

3M™ ElectroCut™ Film 1172C, Red, 1220 mm x 45.7 m, 1 Roll/Case
- 3M ID 75030044525
- UPC 50051138644890
Details
Highlights
- Traffic signs manufactured with the transparent coloured 3M Electronic Cuttable Films 1170C can be CE marked following the respective European Technical Approval (ETA), with exception of orange EC film 1174C
- Due to the high transparency of 3M Electronic Cuttable Films, retroreflective signs made with these films give equal or better retroreflective performance than sheetings screenprinted with transparent inks
- Transparent coloured electronic cuttable films applied to white 3M™ Reflective Sheeting can be expected to give performance comparable to integrally coloured reflective sheetings
- Imaging through a solvent free process compared to screenprinting inks
- Provides optimal cutting, weeding, lifting, and transfer features
Transparent coloured electronic cuttable films with pressure-sensitive adhesive for application over 3M™ Reflective Sheetings. Specifically designed for use on electronic cutting equipment to create coloured backgrounds, panels, text or symbols on traffic signs. It is an alternative imaging method to screen printing or using cut out text and symbols.
Specifications
| Adhesive Type | Pressure-sensitive |
| Availability | Standard |
| Brands | ElectroCut™ |
| Features | Solvent-free Adhesive, Pressure-sensitive Adhesive |
| Imaging Method | Electronic Cut |
| Liner | Yes |
| Performance Features | Retroreflective |
| Product Code | 1172C |
| Product Color | Red |
| Product Series | 1170C |
| Product Usage | Commercial Signs, Traffic Signs |
| Specifications Met | EN 12899-1:2007 Type RA2 / ETA R2 |
| Substrates | Weather-resistant Surface |
| Overall Length (Metric) | 45.7 m |
| Overall Width (Metric) | 1.22 m |
Resources
PB 1170 3M™ ElectroCut™ Film Series 1170Bulletins
(PDF, 201KB)
