3M™ Seperable Connector - Equipment Connection Kit 5815-E,upto 25KV,1 per case
- 3M ID 80610983183
- UPC 50054007042346
Details
Highlights
- Provides fully shielded, dead-front cable connections to apparatus such as transformers, oil switches and transformer switches
- Permits connection to standard non-loadbreak
- Shielded connection for transformers, oil switches and transformer switches
- Splices both aluminum and copper conductors
- ANSI/IEEE Approved

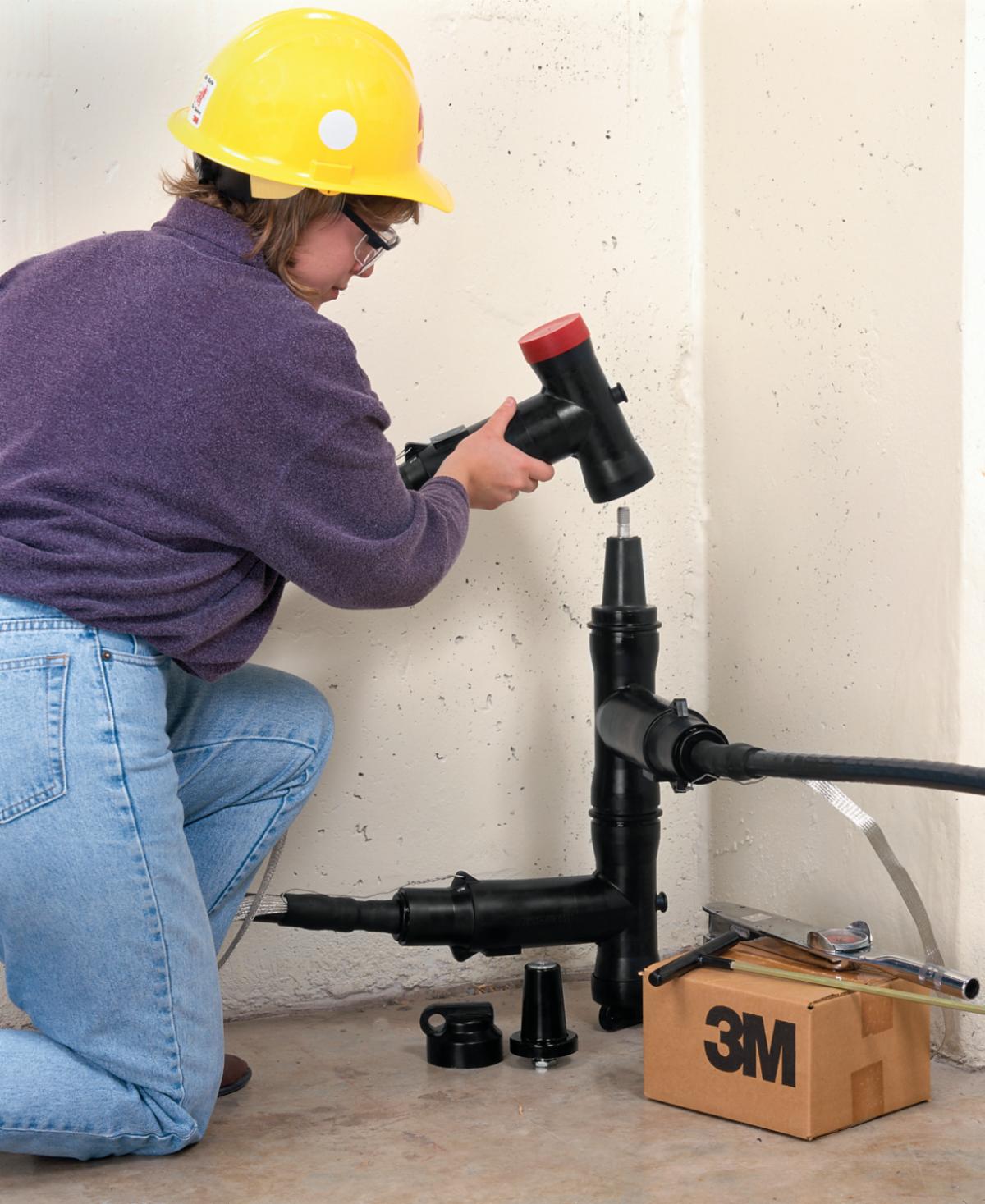

3M™ Modular Equipment Kit provides fully shielded, deadfront cable connections to apparatus such as transformers, oil switches and transformer switches by permitting a connection to standard, non-loadbreak, bushings and is rated for 600-amps, 5 to 25 kV cables.
3M™ Modular Equipment Kit includes 1 tee module, 1 dead end plug, 1 connecting stud, 1 instruction booklet and silicone lubricant. This kit can accommodate stranded aluminum conductors of size 2 AWG to 1000 kcmil and copper conductors of size 2 AWG to 750 kcmil. Meets ANSI/IEEE standards.
Typical Properties
| Applications | 600 A Deadbreak |
| Brands | 3M™ |
| Cable Type | Polymeric insulated cables |
| Component Type | Elbow |
| Current | 600 |
| Current Rating | 600.0 |
| Includes Compression Connector | Yes |
| Indoor/Outdoor | Outdoor |
| Lug/Stem Connector Included in Kit | Mechanical Lug |
| Material | EPDM Rubber |
| Model | EPDM |
| Number of Conductors | 1 |
| Number of Mastic Sealing Strips | 2 |
| Operating Temperature (Celsius) | 90 |
| Product Color | Black |
| Product Series | 5815 |
| Product Type | Splice |
| Shielding Type | Jacketed Concentric Neutral (JCN), UniShield®, Tape Shield, Wire Shield |
| Splice Type | Modular |
| Temperature Rating | 356°F (180°C) Class H |
| Units per Case | 1.0 |
| Voltage Application | Medium Voltage |
| Overall Length (Metric) | 311 mm |
